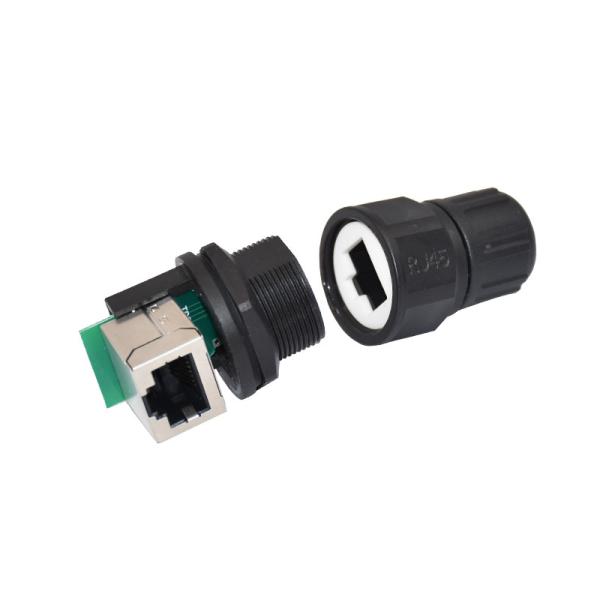

DC Ethernet Splitter Connector Waterproof Panel Mount Rj45 Connector

Product Categories

Shenzhen Rigoal Connector Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: DC Ethernet Splitter Connector Waterproof Panel Mount Rj45 Connector
Brand: RIGOAL
Price: 1 USD

Brand Name : RIGOAL

Model Number : RJ45 90degree type

Certification : CE , Rohs

Place of Origin : Shen zhen, China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Assembly : Solder

Certificate : UL,CE,TUV,ROHS,CCC ,CQC

Type : RJ45

Current rating(A : 1.5A

Protection level : IP67

Hardware Metal : Zinc Alloy

Standard impedan : ≤5mΩ

Operating voltage : AC 250V

Application : Motor

Contact Now

IP67 RJ45 Ethernet DC Splitter Connectors Waterproof Panel Mount RJ45 Ethernet Network Cable Connector

DC Ethernet Splitter Connector Waterproof Panel Mount Rj45 Connector

Protection level	IP67
Cable specification	0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥750 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
