IP68 3 4 5 6 8 12 17 Pin A B D Code Male Female Cable Molding Straight Signal Panel Mount M8 M12 Waterproof Connector

Name: IP68 3 4 5 6 8 12 17 Pin A B D Code Male Female Cable Molding Straight Signal Panel Mount M8 M12 Waterproof Connector
Brand: RIGOAL
Price: 1 USD

Quality IP68 3 4 5 6 8 12 17 Pin A B D Code Male Female Cable Molding Straight Signal Panel Mount M8 M12 Waterproof Connector for sale

Brand Name : RIGOAL

Model Number : M5,M8,M12

Certification : CE, RoHS, IP68

Place of Origin : Shenzhen, China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 15 working days for bulk order

Packaging Details : Regular box: 46*30*30 cm

Type : ADAPTER

Gender : Male and Female

Color : Black or OEM Color

Code : A / B / D / K / L / X / S / T Code

Contact material : CuZn,TPU or PVC

Rated Voltage : 30V - 250V

Rated Current : 1A - 4A

Temperature Range : -25℃~85 ℃

Waterproof Level : IP67 / IP68

Contact Now

IP68 3 4 5 6 8 12 17 Pin A B D Code Male Female Cable Molding Straight Signal Panel Mount M8 M12 Waterproof Connector

Product Introduction

M12 Waterproof Connector
 * M8/M12 series circular waterproof connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators,sensors,industrial ethernet,and Fieldbus etc..
 * M12 series waterproof connector with IP67/68 rating. Provides with 2, 3, 4, 5, 6, 8,12,17 contacts, different pin match specific applications. eg, sensor and power applications require 3 or 4 pins, Profinet and ethernet require 4 or 8 poles, Fieldbus, CANbus and DeviceNet typically use 4 or 5 pins, and signal usually employ 12 and 17 pins.
 * We supply full series of M12 waterproof connector with field wireable (assembly) connector, molded cable connector, panel mount connector, T/Y type adapter, NMEA 2000 marine connector, wire harness and accessories.
 * PVC(general)or PUR (oil resistant) cables available with customized length according to user requirements.

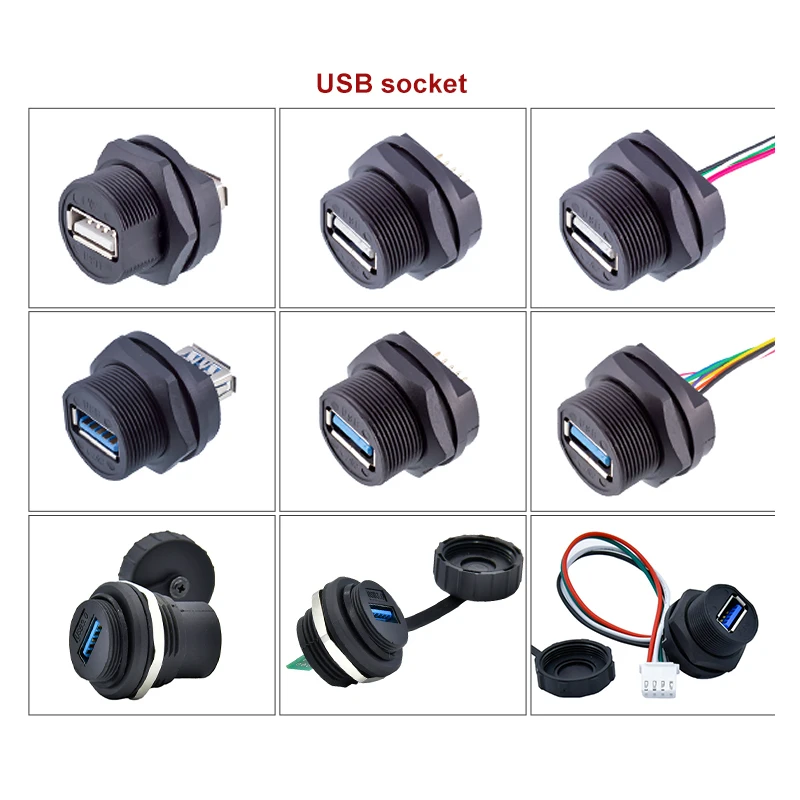

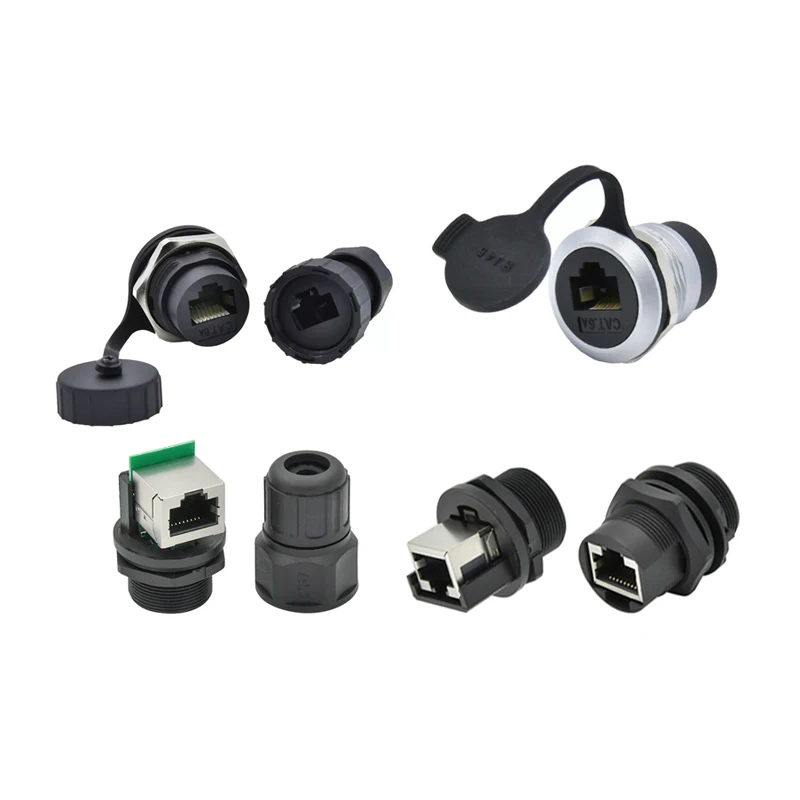

Industrial USB/RJ45 Connector

* We provide whole range of Industrial I/O waterproof connectors: waterproof USB connector, RJ45 connector, D-SUB and HDMI connectors.
 * Connector Series: Waterproof usb Type A / Type B / Type C / Micro B / Mini B
 * With the special design, their waterproof level can reach IP67/68, and are widely used in: computers, digital cameras, scanner and other transmission equipment.

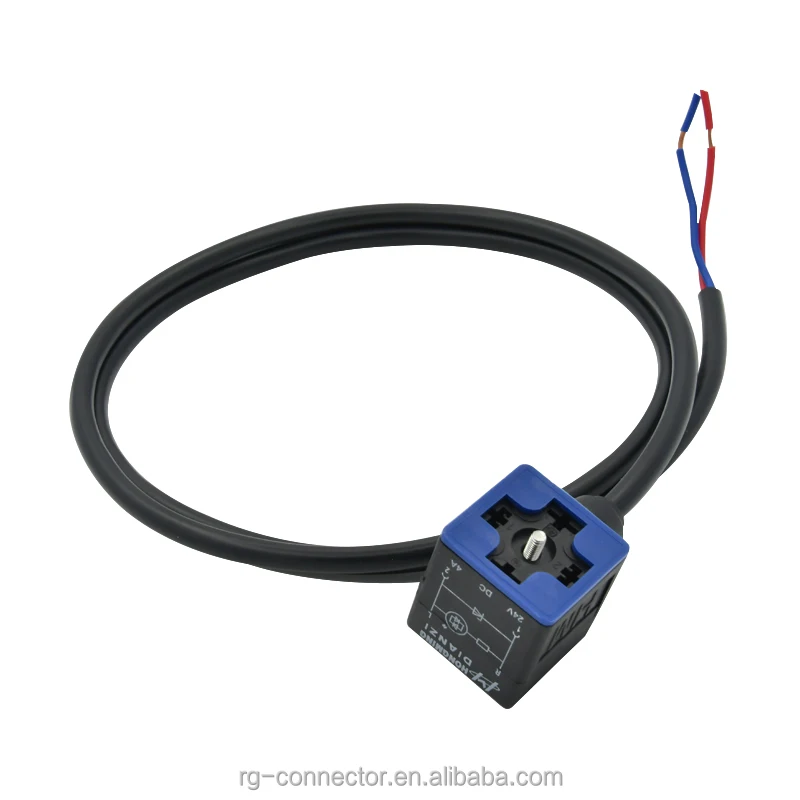

 * With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on. Solenoid Valve Connector

Solenoid valve waterproof connector carefully selects high quality PC shell materials and PA socket material, strong and durable, waterproof and dustproof, not easy to destroy, good performance, has a long service life
* Design as per DIN EN 175301-803, formerly DIN 43650
 * Degree of protection: IP65/IP67
 * Version A,B and C are available
 * TPU over-molded
 * Cable length customized ,PVC and PUR cable options
 * LED indicator is available
 * Temperature Range: -30°c ~ +120°c

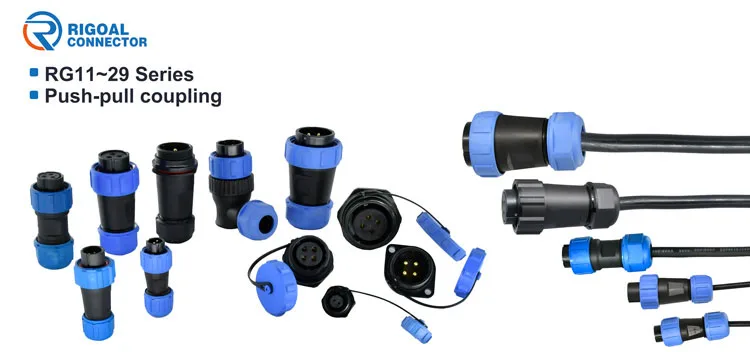

SP Series Waterproof Connector

SP series waterproof connector according to different sizes, has SP11, SP13, SP17, SP21 and SP29 series.
 SP11: 2-5pin; SP13: 2-9pin; SP17: 2-10pin ; SP21: 2-12pin; SP29: 2-26 contacts.
SP Series waterproof connector of threaded IP68 connector are perfect for your application.This particular model has a bigger and stronger shell.That coupled with the IP68 rating in harsh environments.
When choosing a female connector, this version should really be one you consider, moreover, These robust waterproof connector can be used for both cable to cable(in line and cable to panel-mount connections.
With its IP68 rating. each product is excellent within harsh environments, giving you peace of mind. All models are highly reliable and excellent quality.
For indoor and outdoor use. These SP waterproof connectors are widely used in communication electronics, instrumentation, underwater work, high temperature work, aviation field, construction field, engineering field and other outdoor places.

Material and Spec
Shell Material		PC, Nylon66, fire resistance: V-0
Insert Material		PPS, max temperature 260℃
Contact Material		Brass with Gold Plating
Termination		Solder: SP13,SP17,SP21,SP29 Crimp: SP17,SP21,SP29 Screw: SP21,SP29
Cable outer diameter range		SP11: 4 - 6.5 MM SP13: 4 - 6.5 MM ; 5 - 8 MM SP17: 6 - 10 MM SP21: 4.5 - 7 MM ; 7 - 12 MM SP29: 13 - 16 MM
Temperature Range		-25°C ~ + 85°C
Mating Circle		500
Insulation Resistance		2000 MΩ

Packing & Delivery

Packaging:
 1.Our standard packaging: * About 50pcs put in a plastic box
 * Wrap the product with thin film along with the plastic box
 * Put all boxes in a small carton,the size of carton is 46*30*30 cm
 2.OEM/ODM package is available.

 Shipping:
 According to customer request, we can choose different convenient shipping way.

FAQ


Q1: Are you a factory?
 A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
 Q2: How about the certificates?
 A: ISO 9001, RoHS, IP68, CE etc.
 Q3: How about the payment terms?
A: We can do 50% deposit , then 50% balance before shipment
 Q4: How long is the delivery time?
 A: Standard Products: 1-2 weeks, Custom Products: 15-25 days
 Q5:Why choose us?
 A: 1.one of largest connector factory in Asia
 2.more than 10 years of export experience
 3.good quality &factory directly low price
 4.more than 10 years manufacture experience accepted OEM&ODM service
 Q6:What can you buy from us?
 A: Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,
 M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.
 Q7: Our services?
 - Fast Samples delivery service
 - Quote within 24 hours
 - Professional teams with RD & Sales for your projects
 -Special service for your urgent case - Customer is always our focus.
